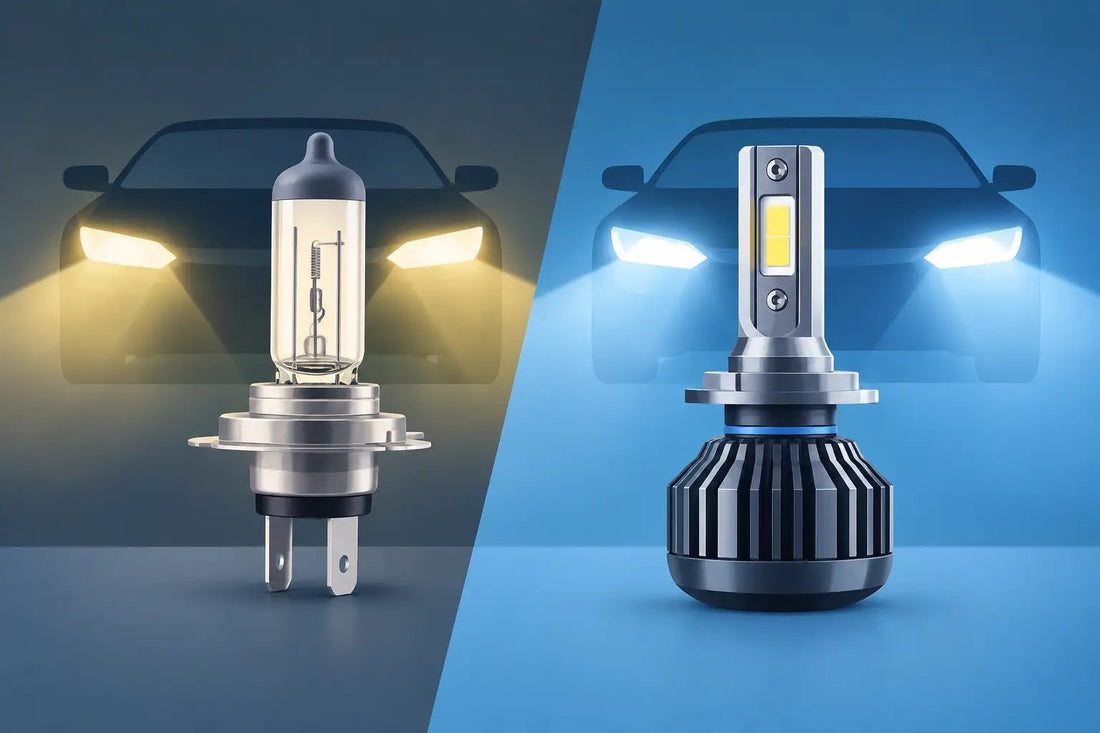

Halogen Versus LED Headlight Bulbs Compared

A dark two-lane road exposes the limits of factory lighting fast. If the pavement ahead looks yellow, short-range, and flat, the question is usually halogen versus LED headlight bulbs. The better choice is not simply the bulb with the biggest lumen number. Your headlight housing, beam pattern, electrical system, local regulations, and driving conditions all matter.

For most drivers looking for stronger usable light and lower power draw, a well-designed LED conversion is a major upgrade over standard halogen. But an LED bulb has to place light in the correct position inside the housing. A poor-fit LED can create glare, scatter light above the cutoff, and make night driving worse for everyone.

Halogen Versus LED Headlight Bulbs: The Core Difference

Halogen bulbs create light by heating a tungsten filament inside a glass capsule filled with halogen gas. It is proven, inexpensive technology, and it is what many vehicles leave the factory with. The trade-off is that a large share of the energy becomes heat rather than visible light.

LED headlight bulbs use light-emitting diodes instead of a filament. They generally produce a whiter, more focused-looking light while using less electrical power. High-output LED designs also use heat sinks, cooling fans, or dual turbo-fan systems to manage the heat generated at the LED chips and driver components.

The difference you see from the driver’s seat comes down to usable light on the road. Raw output matters, but beam control matters just as much. A bulb that advertises extreme brightness is not automatically the best bulb for your vehicle if its LED chips do not line up correctly with the original halogen filament position.

Brightness and Nighttime Visibility

A standard halogen bulb typically produces a warm yellowish light, often around 3,000K to 3,500K. That color can feel dim next to modern LED lighting, especially on unlit roads, in rain, or when trying to identify lane markings at a distance.

Most LED headlight upgrades are rated around 6,000K to 6,500K cool white. This color appears cleaner and can improve contrast on pavement, signs, road edges, and obstacles. Higher-quality LED bulb systems can also deliver substantially more light than stock halogens while drawing fewer watts.

Still, do not shop by color temperature alone. A very blue light may look dramatic but can be tiring in poor weather and is not always the best choice for practical road visibility. A 6,000K to 6,500K cool-white setup is a common performance-focused range because it provides a modern appearance without pushing too far into blue tones.

Beam Pattern Is More Important Than a Bright Spec Sheet

Your low beams need a controlled cutoff. The light should illuminate the road ahead and to the sides without sending excessive light into oncoming traffic. In reflector housings especially, the LED emitter placement must closely replicate the original halogen filament.

After installing LED bulbs, park on level ground facing a wall and inspect the beam pattern. Look for a defined cutoff, even left-to-right distribution, and no large bright patches above the cutoff line. Then verify your headlight aim. Even excellent bulbs can glare if the headlights are aimed too high.

Projector headlights tend to control light more precisely, but they are not automatically trouble-free. Check bulb orientation, mounting depth, and dust-cap clearance regardless of housing style.

Power Draw, Heat, and Cooling

Halogen bulbs run hot. The glass capsule and filament produce enough heat that they should never be handled with bare fingers during installation. Oil from skin can create hot spots and shorten bulb life.

LEDs are more electrically efficient, but they are not heat-free. Their heat is concentrated at the base of the LED chips, where it must be pulled away to protect output and lifespan. That is why performance LED headlight bulbs may use an aluminum heat sink, braided cooling material, or an active fan.

For a high-output setup, cooling hardware deserves real attention. A compact fanless bulb can work well where rear headlight space is limited. A higher-wattage bulb with dual turbo fans may be a better fit for drivers who want maximum sustained output, provided the housing has room for it and the fan can move air freely.

Before buying, check the available space behind the headlight housing. Some vehicles need an extended dust cap, a specific bulb body size, or a design with a removable collar for easier installation. A bulb that cannot be sealed correctly against moisture is not a practical upgrade.

Lifespan and Replacement Cost

Halogen wins on initial price. Basic replacement halogen bulbs are widely available and inexpensive, which makes sense for an older daily driver or a vehicle you plan to keep only briefly. They are also simple: replace the failed bulb, reinstall the connector, and go.

The downside is replacement frequency. Halogen filaments wear out, and vibration, voltage fluctuations, and repeated heat cycles all reduce service life. If one bulb has failed after years of use, replacing both sides is usually smart because the other bulb is likely near the end of its life too.

A quality LED bulb generally costs more up front but can provide a longer operating life. The value is strongest for drivers who spend significant time on the road after dark, run a work truck, commute on rural highways, or want better trail and off-road visibility. Long life is not guaranteed, however. Excess heat, poor driver design, water intrusion, and blocked cooling fans can shorten any LED system’s service life.

Installation and Vehicle Compatibility

Many LED headlight bulbs are marketed as plug-and-play, and in many vehicles they are. You remove the original halogen bulb, install the LED replacement, connect the factory plug, secure the driver module if included, and test the lights.

Some vehicles present extra electrical challenges. Modern vehicles may use a CANbus monitoring system that checks bulb resistance. Because LEDs draw less power than halogens, the vehicle may interpret the lower draw as a burned-out bulb. The result can be a dashboard warning, flickering, hyperflash on turn signals, or intermittent operation. A compatible decoder or anti-flicker harness may be needed.

Fitment also means confirming the bulb size. H11, 9005, 9006, H4, H7, and 9012 are common examples, but they are not interchangeable. Verify your vehicle year, make, model, trim, and original bulb position before ordering. High beam, low beam, fog light, and daytime running light positions may all use different bulb types.

Legal Use and Responsible Upgrades

Headlight regulations vary by state, and vehicle equipment standards can be specific about beam performance. An LED replacement bulb may physically fit a halogen housing while still not be approved for on-road use in every application. Off-road lighting, light bars, and auxiliary driving lights have their own use restrictions as well.

Use the correct beam setting, keep your lenses clear, and aim headlights after any bulb or suspension change. If your headlight lenses are severely oxidized, restoring or replacing the housings may deliver a bigger improvement than installing brighter bulbs into a cloudy lens.

Which Bulb Type Fits Your Vehicle?

Choose halogen when the lowest initial cost is the priority, your vehicle needs a quick OEM-style replacement, or you want the simplest possible setup. A premium halogen can also be a reasonable option for a housing that does not accommodate an LED heat sink or fan.

Choose LED when you want a brighter white beam, lower power draw, longer potential service life, and stronger nighttime visibility. Look for a design with correct emitter geometry, adequate cooling, stated wattage and lumen output, and vehicle-specific fitment support. For trucks, SUVs, and drivers who regularly face dark roads, the performance difference can be immediately noticeable.

At SLBSTORE, that practical comparison starts with the details that affect real-world results: bulb size, output level, 6500K color temperature, cooling design, and available space behind the housing. The right LED upgrade should not just look brighter in the driveway. It should put controlled, useful light where you need it most - on the road ahead.
