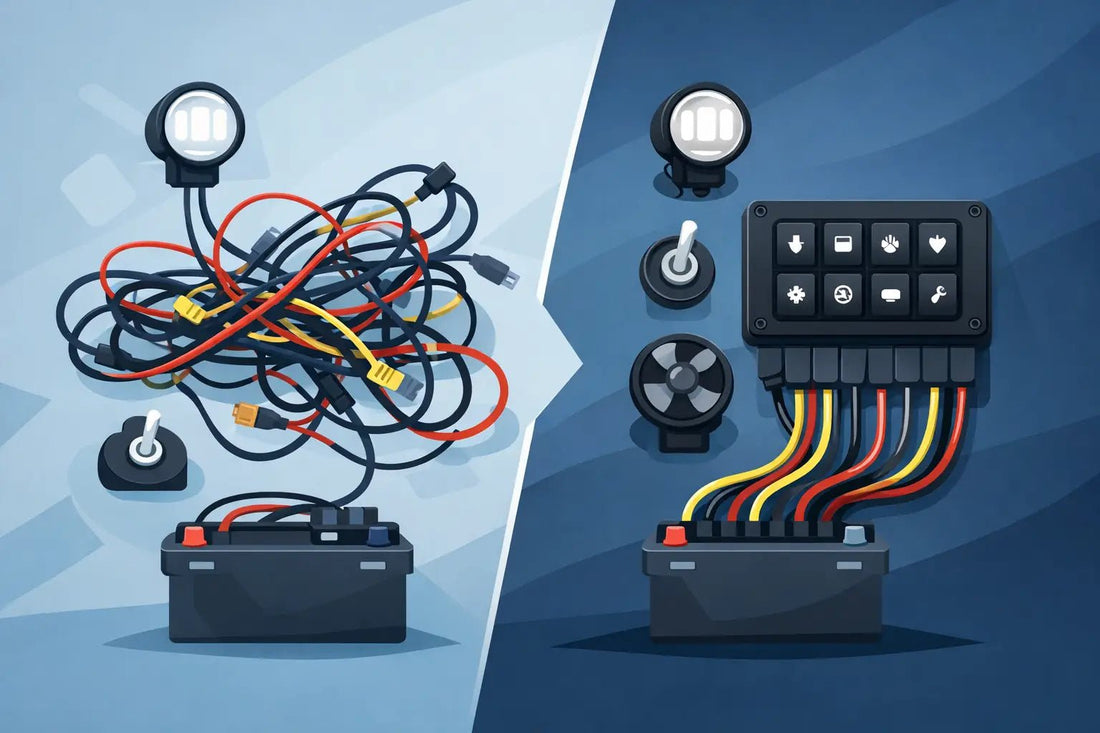

How Switch Panels Clean Up Auxiliary Wiring

Adding a light bar is easy. Managing a light bar, ditch lights, rock lights, an air compressor, and a future accessory without turning the dash into a row of mismatched switches is the harder part. Switch panels give truck, Jeep, SUV, and off-road owners one organized control point for the 12V equipment that makes a vehicle more capable after dark or off pavement.

The right panel does more than make a build look cleaner. It helps separate accessory control from factory wiring, reduces the need to cut extra holes in the dash, and makes it easier to identify the circuit you need at a glance. For drivers adding high-output LED lighting, that organization matters when visibility conditions change quickly.

What Switch Panels Do for an Accessory Build

A switch panel is a centralized accessory control system. Instead of mounting individual rocker switches throughout the cab and running separate power leads for every device, the system combines multiple outputs into a compact control pad. The control pad mounts inside the cab, while a fused power module is usually installed under the hood near the battery.

Each button or switch controls one connected accessory. That can include forward-facing driving lights, a 6500K LED light bar, rear work lights, bed lights, rock lights, a horn, an air compressor, or an electric fan. Many systems use labeled, backlit buttons so controls remain visible at night without being distracting.

For a basic lighting setup, individual switches can work. The trade-off is expansion. Every new accessory may require another switch location, another hole, another fuse, and more wiring through the firewall. A multi-circuit panel gives you room to build in stages while keeping the cab and engine bay more orderly.

Why a fused control module matters

High-output accessories draw real current. A powerful LED light bar, for example, should not be powered through a small dash switch or tied into an unrelated factory circuit. A quality switch panel system uses a dedicated fused module, relays or solid-state switching, and appropriately sized wiring to manage accessory loads safely.

This design keeps high-amperage power under the hood while the in-cab pad handles low-current control signals. It is a cleaner approach for most DIY installations and helps protect both the accessory circuit and the vehicle's factory electrical system.

A panel does not eliminate the need to check current draw. Add up the amperage of the accessories you plan to run, verify the output rating for each circuit, and confirm that the main power feed and fuse capacity support the total load. A six-gang panel may physically offer six outputs, but that does not mean every output can run at maximum amperage at the same time.

Choosing the Right Switch Panel Capacity

The best switch panel is not always the one with the most buttons. It is the one that fits your current equipment and leaves reasonable room for the next upgrade.

A four- or six-circuit system can be a practical choice for drivers running a pair of auxiliary lights, a light bar, rear-facing work lights, and an air compressor. An eight-circuit panel gives more flexibility for a truck or trail rig with multiple lighting zones, rock lights, a refrigerator outlet, a winch control trigger, or other accessories.

Before choosing, write down every accessory you intend to control. Then reserve at least one or two circuits for future additions. That small amount of planning can prevent replacing the entire control system after the next lighting upgrade.

Check circuit ratings, not only button count

Look for the maximum amperage per circuit and the maximum combined system rating. Some accessories need a low-amperage trigger circuit, while others draw substantially more power during operation or startup. Air compressors are a common example: their startup demand can exceed the load of a typical LED lighting circuit.

Also check whether the panel supports momentary, latching, pulsed, or flashing functions. Latching operation is standard for lights that stay on until switched off. Momentary operation is useful for an air horn or another accessory that only needs power while the button is held. Programmable switch panels may let you assign these behaviors by circuit, which can reduce the need for additional control hardware.

For auxiliary lighting, consider whether the panel provides a dimming function, backlight color adjustment, or a master on/off control. These features are convenient, but electrical ratings, weather resistance, and wiring quality should come first.

Plan the Installation Before Running Wire

The cleanest installations start with component placement. Mount the control pad where it is easy to reach without blocking gauges, airbags, vents, or important factory controls. Common locations include a windshield-mounted bracket, a dash top mount, an overhead console, or a center-console position. The best location depends on the vehicle and how often you need to operate accessories while moving.

The power module should be mounted in the engine bay away from direct exhaust heat, moving components, and areas that collect standing water. Choose a solid surface with enough clearance for wire routing and service access. Keep the main battery leads as short as practical, but do not stretch or sharply bend cables to force a location.

Plan the route from the engine bay to the cab before drilling. Use an existing factory firewall grommet whenever possible. If a new pass-through is necessary, protect the wire with a proper grommet and seal the opening against moisture. Never route wiring through bare metal openings or near steering shafts, pedals, exhaust components, or sharp edges.

Match wire size and fuse protection to the load

The included harness on a complete panel kit is designed for the panel's rated capacity, but accessory-side wiring still matters. A long run to rear work lights may require a different wire gauge than a short run to a grille-mounted pod light. Undersized wire can create voltage drop, reduced light output, excess heat, and unreliable accessory operation.

Each circuit should have fuse protection matched to the accessory and wire size. Do not install a larger fuse just because one keeps blowing. A blown fuse is a signal to check for a short, damaged wire, incorrect accessory draw, or a circuit that is being asked to carry too much current.

Good connections are equally important. Use quality crimp terminals, heat-shrink protection where appropriate, and secure mounting points. Leave enough service slack to remove a light or access a connector later, but avoid loose loops that can rub, snag, or trap water.

Build Lighting Zones That Make Sense

A switch panel makes the most sense when each circuit has a clear job. Instead of grouping every accessory light onto one switch, organize lighting around how and where you use the vehicle.

Forward-facing driving lights can occupy one circuit, while a separate circuit controls a roof-mounted light bar for off-road use. Rear work lights can be independent for loading gear, backing into a campsite, or working around the truck after dark. Rock lights can have their own control for trail spotting, vehicle visibility, or appearance when parked.

This separation gives you more control and helps avoid unnecessary glare. It also makes troubleshooting easier. If one lighting zone stops working, you know which circuit, fuse, connection, and accessory run to inspect.

For street-driven vehicles, keep local and state regulations in mind. High-output auxiliary lights are valuable for off-road trails, work areas, and low-visibility conditions where permitted, but forward-facing lights may need to be covered or switched off on public roads. A well-labeled panel makes that easier to manage.

Features Worth Paying For

Not every add-on feature delivers the same value. For most truck and off-road owners, a weather-resistant power module, clearly marked circuits, replaceable fuses, reliable output ratings, and a durable control pad are more useful than novelty lighting effects.

Backlit labels are worth having because they reduce distraction at night. Custom or interchangeable labels are especially helpful when your build changes over time. If a circuit starts as “Light Bar” and later becomes “Compressor,” the control should stay clear to anyone driving the vehicle.

Programmable functions can be useful when they solve a real need. A momentary button for a horn, a strobe pattern for an off-road recovery situation, or a master control to shut down all accessory lighting can make operation faster. If you want simple, dependable on/off control, a straightforward panel may be the better value.

SLBSTORE shoppers building around AUXBEAM LED lighting should compare panel capacity with the actual wattage and current demand of every planned light. Brightness figures such as 25,000LM or 40,000LM are useful when comparing lighting output, but the electrical system must still be designed around watts, amps, wire length, and circuit ratings.

Keep the System Easy to Service

A good accessory install should be easy to troubleshoot a year from now. Label both ends of important wires, keep a record of which circuit powers each accessory, and photograph the fuse layout after installation. These small steps are useful when adding equipment, diagnosing a problem, or selling the vehicle.

Inspect wiring after the first few drives and again after rough trail use. Look for loose fasteners, rubbed insulation, water intrusion, and connectors that have worked free. Electrical organization is not just about appearance. It helps your lights, compressor, and other gear perform when you need them.

Start with the accessories you use most, leave room for the next upgrade, and wire each circuit for the load it will carry. A properly selected switch panel turns a growing collection of add-ons into a control system you can actually use with confidence.
