How to Install LED Pod Lights the Right Way
Share
A pair of LED pods can make a real difference when factory headlights stop short of the shoulder, trail edge, worksite, or reverse path. To install LED pod lights correctly, treat the job as more than attaching two lamps and running a wire to the battery. Mounting position, beam pattern, wire protection, fuse placement, and final aiming determine whether the upgrade delivers usable visibility or creates glare and electrical trouble.
For trucks, SUVs, Jeeps, ATVs, and work vehicles, a properly installed pod light setup adds focused light where you need it most. The goal is controlled output, not simply the highest possible lumen number.
Choose the Right LED Pod Lights Before You Mount Them
Start with how and where you plan to use the lights. Spot beam pods project a narrow, long-distance beam and work well as forward-facing driving lights on open trails or rural roads. Flood beams spread light across a broad area, making them useful for ditch lighting, cargo areas, campsites, and slow-speed trail driving. A combo pattern provides a middle ground, but it will not throw as far as a dedicated spot or spread as widely as a dedicated flood.
Color also affects the result. A 6500K cool-white LED pod light gives a crisp, high-contrast appearance that many drivers prefer for night use. Amber pods can improve contrast in dust, fog, snow, and heavy rain, although they are not a cure for poor weather conditions. Dual-color or switchback pods are useful when one mounting location needs both white forward light and amber auxiliary light.
Do not size the electrical system by light output alone. Check the actual wattage and current draw for each pod, then size the fuse, relay, harness, and switch circuit accordingly. Two 40W lights on a 12V system can draw roughly 6.7 amps before allowing for real-world electrical variation. A quality harness should have enough capacity for the load, not just barely meet it.
Plan the Mounting Location and Beam Pattern
Before drilling anything, hold each pod in place and check the view from the driver seat. Make sure the hood, grille, bumper, tire, roof rack, or spare tire will not block part of the beam. Also check that the light housing has clearance from moving suspension parts, hood latches, winches, and recovery gear.
Bumper-mounted forward pods are usually the easiest location for driving, spot, or fog-style lighting. Ditch mounts near the base of the windshield are effective for lighting trail turns and road shoulders. Rear-facing pods work well for backing up trailers, loading equipment, or illuminating a work area. Roof-mounted lights can cover a large area but sit high enough to create hood glare, windshield reflection, and more wind noise if they are aimed carelessly.
Use solid metal mounting points whenever possible. Thin plastic trim and unsupported sheet metal can flex, crack, or loosen over time. If a bracket requires drilling, inspect the back side first for wiring, intercoolers, radiators, fluid reservoirs, and airbags. Use corrosion-resistant hardware, flat washers where needed, and a locking nut or thread locker to keep vibration from changing the aim.
Tools and Parts That Make Installation Cleaner
A complete install is easier when the parts match the job. Gather these items before opening the hood:
- LED pod lights, brackets, hardware, and gaskets
- A relay harness with an inline fuse sized for the light circuit
- A switch or compatible switch panel
- Wire loom, zip ties, rubber grommets, and heat-shrink connectors
- A drill, bits, socket set, crimping tool, wire stripper, and multimeter
- Dielectric grease and a basic trim tool for interior switch routing

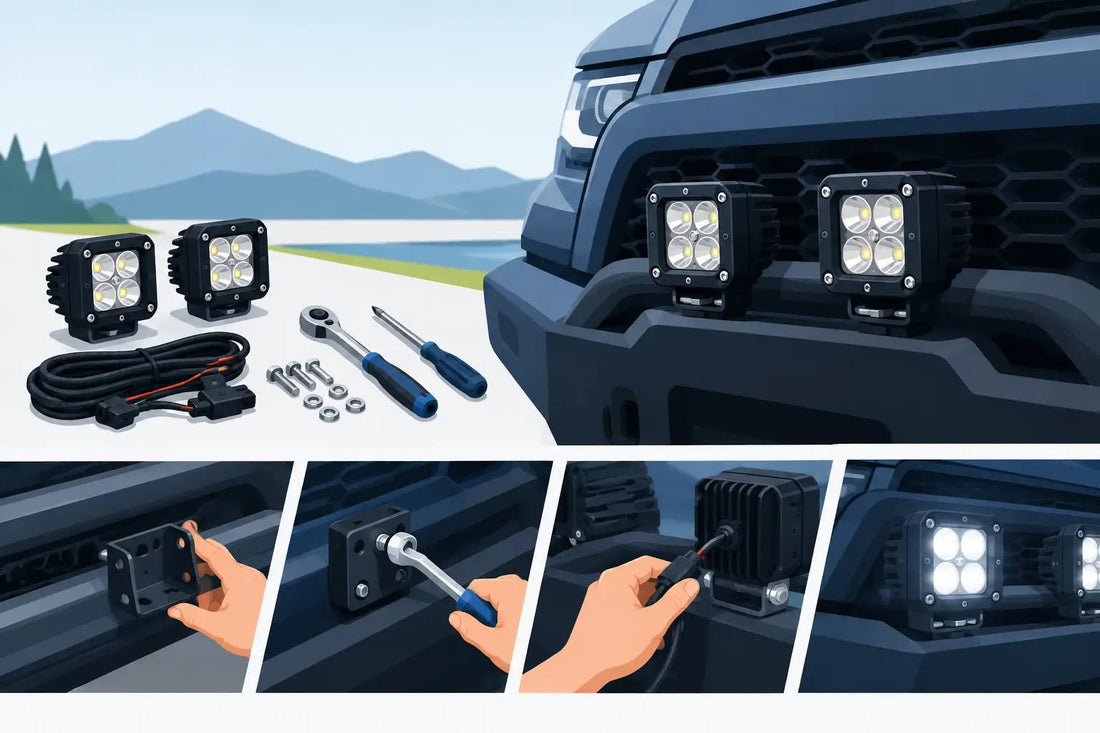

How to Install LED Pod Lights With a Relay Harness
Mount the lights first, but leave the bracket bolts slightly loose. You will need adjustment room during final aiming. Route the pod light leads along the bumper support, frame, or factory wire paths, keeping them clear of sharp edges, hot exhaust components, steering linkages, belts, and fans.
Place the relay harness where it is protected from direct splash and extreme heat. The engine bay is normal, but avoid locations directly beside exhaust manifolds or where water regularly pools. Run the fused positive lead to the battery positive terminal. The fuse should sit close to the battery, ideally within several inches of the connection, so the wire is protected if it shorts farther down the line.
Connect the harness ground to clean, bare chassis metal or directly to the battery negative terminal. A poor ground can cause flickering, reduced output, intermittent operation, or a relay that clicks without powering the lights. If grounding to the chassis, remove paint only where necessary, use a star washer for solid contact, and protect the finished connection from corrosion.
Run the small switch-control wire through the firewall into the cab. Never force a wire through bare metal. Use an existing factory grommet when available, or install a rubber grommet in any new pass-through hole. This prevents vibration from cutting through insulation and creating a short circuit months later.
Mount the switch where it is easy to reach without taking your eyes off the road. For a dash switch, secure the wiring behind panels so it cannot interfere with pedals, steering components, or airbags. For a switch panel, follow the panel's power and ground requirements, then assign the pod light circuit to a channel with adequate amperage capacity.
Before reconnecting power, inspect every connector. Crimped connections should be tight enough that the wire cannot pull free. Heat-shrink butt connectors and sealed plugs are better choices than loose twist connectors, especially on off-road vehicles exposed to water, mud, road salt, and vibration.
Test the Circuit Before Finalizing the Wiring
Reconnect the battery and test the lights before wrapping the harness in loom or reinstalling trim. Listen for the relay click, confirm both pods illuminate, and make sure the switch backlight and indicator work as intended. If one light does not turn on, check its connector, ground, and polarity before assuming the pod itself is defective.
Use a multimeter if the circuit behaves inconsistently. Battery voltage at rest is typically around 12.6V on a healthy, fully charged battery. With the engine running, charging voltage is commonly higher. Significant voltage drop at a pod light can point to an undersized wire, weak ground, damaged connector, or poor crimp.
Do not replace a repeatedly blown fuse with a larger fuse. A blown fuse is a warning that the circuit may have a short, a damaged wire, water intrusion, or a load that exceeds the harness rating. Find the cause first.
Aim LED Pods for Useful Light, Not Glare
Aiming is the step that separates a capable lighting upgrade from an annoying one. Park on level ground facing a wall or garage door, then begin with the pods aimed lower than you think they need to be. Forward-facing flood pods should light the near field and shoulders without sending most of their output into tree branches, signs, or oncoming traffic.
Spot pods can aim farther downrange, but they still need to stay controlled. Test the pattern on a dark road or trail where their use is permitted. Watch for a hot spot that is too high, hood reflection that hurts your night vision, or a beam that crosses too far toward the opposing lane. Tighten all mounting hardware only after the beam pattern is where you want it.
Check local and state rules before using auxiliary lights on public roads. Many areas restrict the color, height, number, covers, and on-road operation of off-road lights. A separate switch makes it easier to keep high-output pods off when they are not legal or appropriate to use.
Protect the Install for Long-Term Reliability
Once testing and aiming are complete, secure every wire run with zip ties or clamps at regular intervals. Add split loom where wiring passes near metal, suspension components, or exposed areas under the vehicle. Leave a small amount of service slack near each light so a connector is not pulled tight when the bumper flexes or a bracket is removed.
After the first trail ride, car wash, or week of normal driving, inspect the hardware and wiring again. Re-tighten bracket bolts, check for rubbed insulation, and make sure water has not entered any connector. This small follow-up check prevents most long-term LED pod light problems.
A clean installation should look simple when it is finished: secure mounts, protected wiring, a properly fused power lead, and a beam that puts light exactly where your vehicle needs it. That is what turns LED pods from an accessory into a dependable visibility upgrade.
