Relay Wiring for LED Lights: A Practical Guide

A high-output LED light bar can draw far less current than an older halogen setup, but it still needs a circuit built for real vehicle conditions. Good relay wiring keeps high current out of the cab, protects the factory switch circuit, and gives your lights the voltage they need for consistent output. A weak ground, undersized wire, or skipped fuse can turn a simple lighting upgrade into flickering lights, melted insulation, or a no-start troubleshooting job.

For trucks, Jeeps, SUVs, ATVs, and work vehicles, a relay is one of the most useful parts in an auxiliary lighting installation. It lets a low-current switch signal control a separate, properly fused power circuit for driving lights, fog lights, work lights, air horns, and other accessories.

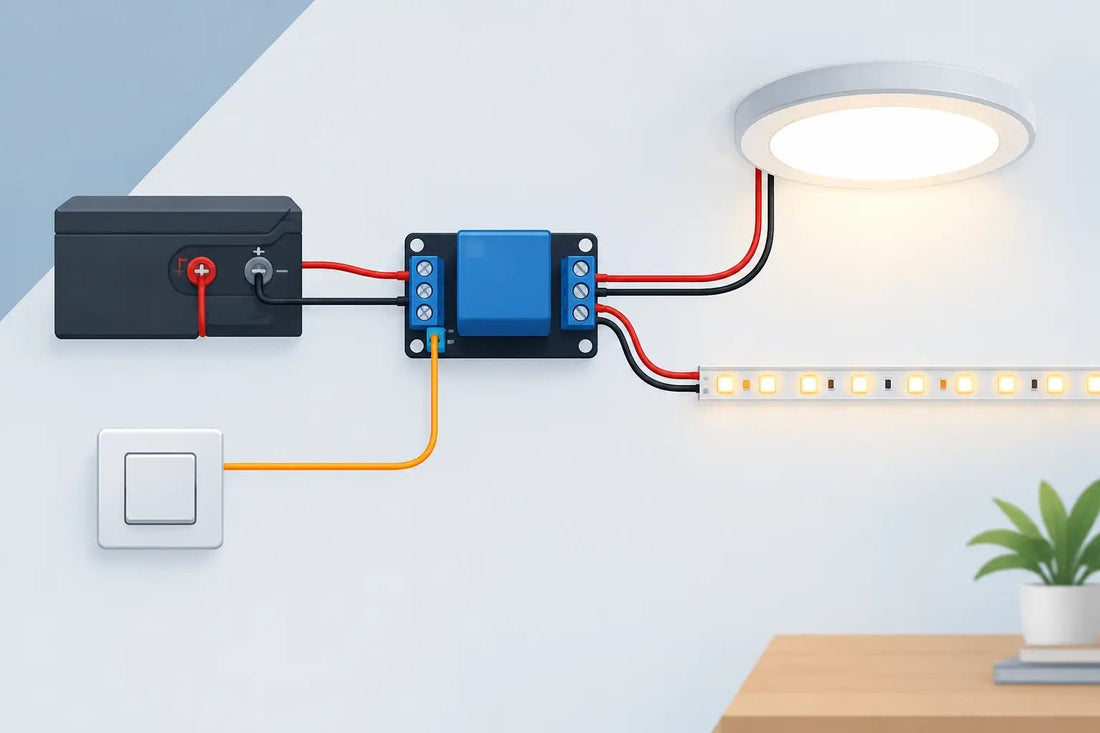

What a Relay Does in an Automotive Circuit

An automotive relay is an electrically controlled switch. Instead of sending full battery current through a dash switch and a long run of small wire, the dash switch activates the relay's internal coil. The relay then closes a higher-current circuit near the battery and sends power to the accessory.

This matters most when adding equipment that pulls significant amperage. A 240W LED lighting setup at 12 volts can theoretically draw about 20 amps, and current can be higher when system voltage is low or wiring losses are present. The actual draw depends on the light's design and stated specifications, but the point remains the same: the circuit must be sized for the load, not guessed from the light's appearance.

A standard four-pin or five-pin automotive relay uses numbered terminals:

• 30 receives protected battery power.
• 87 sends power out to the light or accessory when the relay is energized.
• 85 and 86 operate the relay coil.
• 87a, found on many five-pin relays, is a normally closed output and is usually not needed for a basic auxiliary-light circuit.

On a typical LED light installation, terminal 30 connects to battery positive through an inline fuse, terminal 87 connects to the positive lead of the lights, one coil terminal connects to ground, and the other coil terminal receives the switch trigger. Many relays can use 85 and 86 either way, but some include an internal diode and must be wired according to the markings on the relay case.

Relay Wiring for LED Light Bars and Driving Lights

Start by confirming the lighting system's actual wattage, voltage range, and included harness rating. Do not assume every harness is built for the same load. A compact pair of pod lights, a 120W driving light set, and a 40,000LM light bar may all require different fuse sizes, wire gauges, and relay capacities.

Mount the relay in a protected location near the battery or main power source. Keeping the high-current supply wire short reduces voltage drop and makes the circuit easier to service. Avoid mounting it low in the engine bay where standing water, road spray, and direct exhaust heat can shorten connector life.

Run a power wire from the battery positive terminal to relay terminal 30. Install the fuse holder as close to the battery as practical. The fuse protects the wire between the battery and relay, so a fuse installed several feet away leaves that unfused section vulnerable if insulation rubs through against metal.

From terminal 87, run appropriately sized wire to the positive input of the LED lights. If two lights are installed, split the output with a weather-resistant junction or use a harness designed for dual outputs. Each light should have a secure negative connection to a clean chassis ground or directly to battery negative, depending on the manufacturer instructions and the vehicle's grounding condition.

The switch circuit is lower current, but it still needs careful routing. Connect one relay coil terminal to a reliable ground. Route the other coil terminal to the output side of the dash switch. Supply the switch with a trigger source based on how you want the lights to operate.

A constant battery trigger lets the lights operate with the vehicle off. This can be useful for work lighting, but it also creates a battery-drain risk. An ignition-switched trigger prevents accidental all-night operation and is usually the better choice for auxiliary driving lights. If you want the lights to activate only with high beams, use the high-beam wire as the relay trigger signal, not as the high-current power source.

Select Wire, Fuses, and Connectors by Load

The relay rating is only one part of the system. A 40A relay does not make thin wire safe for a 30A circuit. Every component from the battery connection to the light should support the expected load with margin for heat, vibration, and long wire runs.

For many common LED auxiliary-light setups, 14 AWG wire can work for lower-current loads, while 12 AWG is a more appropriate choice as amperage rises. Larger systems and longer runs may call for 10 AWG. Wire gauge selection depends on current draw and total circuit length, including the return path. When in doubt, use a larger conductor rather than pushing a smaller one to its limit.

Choose the fuse to protect the wire and match the accessory manufacturer's requirements. Do not install an oversized fuse just because it stops nuisance blowing. A blown fuse may point to a short circuit, pinched harness, water intrusion, or a load that exceeds the circuit design. Increasing fuse size without correcting the cause can allow wiring to overheat before the fuse opens.

Crimp connections should be tight, insulated, and weather resistant. Use quality terminals sized to both the wire gauge and the stud or connector they attach to. Heat-shrink butt connectors and split loom add protection in exposed engine-bay and underbody areas. Electrical tape alone is not a long-term solution where heat, oil, moisture, and vibration are present.

Grounding Is Often the Difference Between Bright and Dim

A ground connection is part of the circuit, not an afterthought. LED lights with a poor ground may flicker, run dim, behave inconsistently, or create noise in other electronics. Choose bare, solid metal on the chassis, remove paint and corrosion at the connection point, and use a properly sized ring terminal secured with a bolt or factory ground stud.

For high-output lighting, grounding directly to the battery negative can reduce uncertainty, especially on older vehicles with questionable chassis grounds. It requires an additional wire run, but it can be worthwhile for demanding off-road electrical systems. If you use a chassis ground, inspect the vehicle's battery-to-chassis and engine-to-chassis ground straps as well.

Common Relay Wiring Mistakes to Avoid

The most common problem is powering lights from a switch that was never designed to carry their full current. The switch may work briefly, then become hot, fail internally, or damage factory wiring. A relay prevents that by keeping the high-current path in the engine bay.

Another frequent mistake is connecting the fused battery feed to terminal 87 and the lights to terminal 30. In many basic relay applications, the circuit may still function, but using the standard 30-in and 87-out layout makes future service easier and follows common harness conventions.

Do not route wiring across sharp brackets, steering components, belts, fan blades, or exhaust manifolds. Use grommets where wires pass through metal, secure the harness with clamps or zip ties at regular intervals, and leave enough slack for engine movement without letting the wire hang loose.

Also consider local and state lighting rules. Forward-facing auxiliary lights may need covers on public roads, and certain colors, beam patterns, or mounting locations may be restricted. Maximum brightness is only useful when the beam is aimed correctly and used where it is legal and safe.

Test the Circuit Before Finalizing the Install

Before reinstalling trim panels or fully wrapping the harness, test each part of the circuit. Confirm that the fuse is correctly seated, the relay clicks when the switch is turned on, and the lights operate only under the intended trigger condition. Check both lights for equal brightness and inspect all wire runs while the system is powered.

After five to ten minutes of operation, carefully feel the relay socket, fuse holder, switch, and accessible connections. They should not be excessively hot. Heat at a connection usually signals resistance from a poor crimp, undersized wire, corrosion, or an overloaded circuit.

A clean relay installation does more than turn lights on. It gives high-output LED equipment a protected power path, keeps controls easy to use, and makes future diagnostics far simpler. Take the extra time to fuse close to the battery, build solid grounds, and secure every wire before the next night drive or trail run.
