Spot Versus Flood Beam Patterns Explained

A light bar can produce impressive lumen numbers and still be the wrong light for the way you drive. The real decision in spot versus flood beam patterns is not which one is brighter. It is whether you need to see farther down the trail, farther across the roadside, or a practical mix of both.

For truck owners, overlanders, work vehicles, and off-road rigs, beam pattern determines where usable light lands. That matters more than raw wattage alone. A properly aimed light with the right pattern helps you identify terrain, turns, wildlife, trail markers, and job-site hazards before they become a problem.

What Beam Pattern Actually Controls

An LED light's beam pattern describes how it distributes its output. The LED chips, reflectors, lenses, and housing design work together to shape light into a narrow, focused projection or a broad field of illumination.

Lumens tell you the total amount of light produced. Beam pattern tells you where that light goes. Two lights with similar output can perform very differently at night: one may punch well beyond the end of your high beams, while the other may light both ditches, the shoulder, and the ground immediately in front of your bumper.

This is why a high-output 6500K LED setup should be selected by application, not by specifications in isolation. More output is useful only when it is directed where you need it.

Spot Versus Flood Beam Patterns: The Core Difference

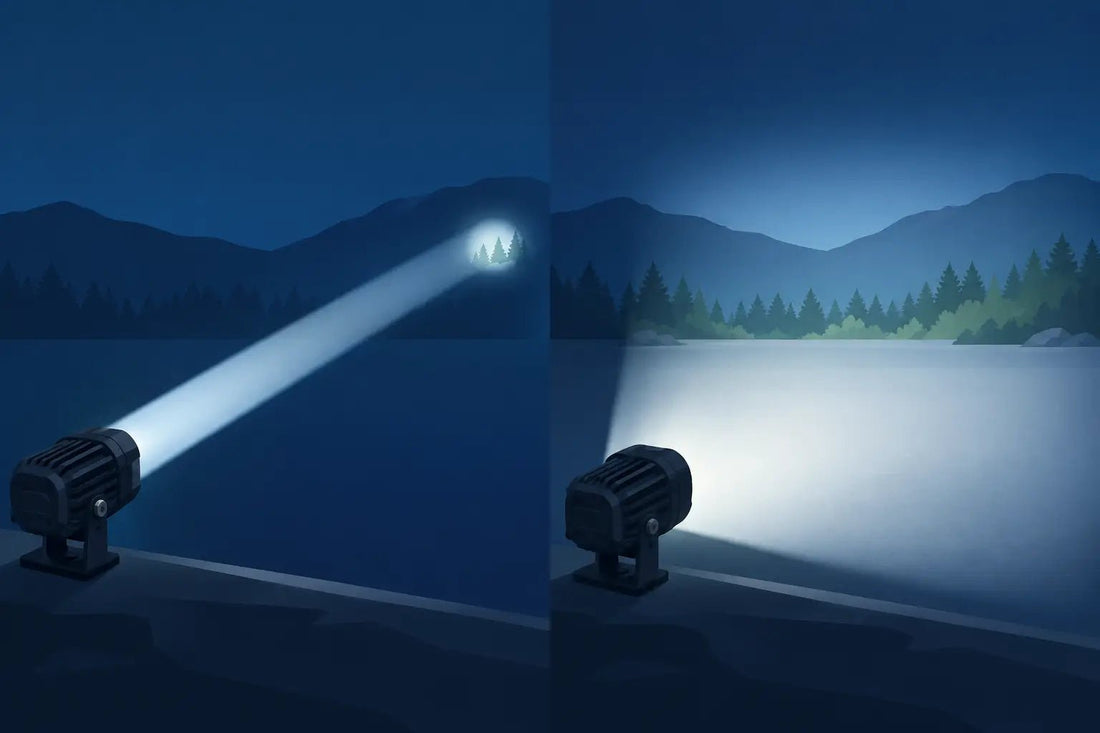

Spot beams concentrate light into a narrow angle, commonly around 8 to 15 degrees. The beam reaches farther because its output is focused in a smaller area. Flood beams spread light across a much wider angle, often 45 to 90 degrees or more, giving you better close-range and side-to-side visibility.

Neither pattern replaces the other in every situation. A spot beam is the long-distance tool. A flood beam is the wide-area tool.

Spot Beams for Distance and Speed

A spot beam is built for seeing well ahead of the vehicle. On an open trail, unlit access road, ranch property, or remote highway, it can reveal what is approaching long before it enters the reach of standard headlights.

This extended reach is especially useful when vehicle speed increases. At 45 mph, you need more forward visibility than you do while crawling over rocks at 5 mph. A spot pattern can help you spot a sharp bend, washout, gate, animal, or obstacle earlier, giving you more time to brake or choose a safer line.

The trade-off is coverage. A tight spot pattern can leave the edges of the road or trail relatively dark. It is not the best standalone choice for maneuvering around trees, lining up tires on uneven terrain, backing around a work area, or scanning for hazards just outside the vehicle's path.

Spot lights usually work best mounted high and forward, such as on a roof rack, upper grille position, or bumper location designed for long-range driving lights. Mounting height and aiming matter. A spot beam aimed too high wastes light and can create dangerous glare for other drivers.

Flood Beams for Width and Close-Range Control

Flood beams spread their output over a broad area. They are designed to fill in the spaces that a narrow driving beam misses: trail edges, ditches, low brush, work zones, campsites, and the terrain near the front corners of the vehicle.

For slow off-road driving, flood coverage can be more valuable than maximum distance. When navigating tight wooded trails or rocky obstacles, you are often looking for the next turn, stump, rut, or ledge rather than an object several hundred yards ahead. A broad beam gives your eyes more usable information at the speed you are actually traveling.

Flood lights also make sense for utility use. Side-mounted floods can illuminate a truck bed, loading area, job site, or campsite. Rear-facing flood or work lights improve visibility while reversing, hooking up a trailer, unloading equipment, or making repairs after dark.

The trade-off is that flood beams do not throw light as far as spots. If you use only floods on an open, fast trail, the bright foreground can make the distance beyond it feel even darker. Your pupils adjust to the nearby light, which can reduce your ability to see farther down the route.

When a Combo Beam Makes More Sense

Many LED light bars use a combo pattern, with spot optics in the center and flood optics at the outer sections. This arrangement delivers forward reach while preserving useful peripheral coverage. For drivers who split time between open roads, trails, farm land, and weekend off-road use, a combo beam is often the most practical single-light solution.

A combo bar does involve compromise. It generally will not throw as far as a dedicated spot bar of the same size, and it will not provide as much close-range width as a dedicated flood setup. Still, it provides balanced coverage without requiring multiple separate lights, mounts, relays, and switches.

If you already run a forward-facing light bar, separate pods can fine-tune the setup. A common arrangement is a center spot or combo bar for distance, paired with wider flood pods near the bumper corners for immediate trail coverage. The best layout depends on available mounting positions, alternator capacity, wiring plan, and how the vehicle is used.

Choose by Driving Environment, Not Marketing Claims

Start with the place where you spend the most time after dark. Open desert routes, long private roads, and high-speed off-road sections favor spot beams. Tight forests, slow technical trails, recovery work, campsites, and job sites favor flood beams.

A pickup that travels rural roads may benefit from a spot or combo driving light for forward distance. A side-by-side used primarily on wooded trails may need wide flood coverage first. An overland truck that handles both highway miles and camp setup can benefit from a combo bar up front plus dedicated side or rear work lighting.

Consider these practical questions before choosing a pattern:

• Do you need to identify obstacles at long range or near the vehicle?
• Are your routes open and fast, tight and technical, or a mix of both?
• Will the lights be used only off-road, or on private property and job sites?
• Do you have room for separate forward, side, and rear-facing lights?
• Can your switch panel, fuse protection, and vehicle charging system support the planned wattage?

Output specifications still matter. Higher-wattage lights, effective heat dissipation, quality sealing, and stable mounting help a lighting system perform consistently. But no amount of advertised lumens fixes a pattern mismatch.

Aiming Is Part of Beam Performance

The right beam pattern can underperform if it is aimed poorly. Install lights on a stable mounting surface, then aim them on level ground after the vehicle is loaded as it normally would be. Cargo, tools, a winch, larger tires, suspension changes, and passengers can all change vehicle attitude and light direction.

For forward-facing auxiliary lights, begin with a conservative downward angle. Test the beam in a safe, dark off-road or private area and adjust gradually. You want distance without lighting treetops, signs, or airborne dust. In fog, snow, rain, or heavy dust, high-mounted forward lights can reflect light back toward the driver. Lower-mounted, carefully aimed lighting may provide better usable visibility in those conditions.

Keep auxiliary lights off on public roads unless they are specifically legal for on-road use in your location and properly aimed. State and local rules vary, and high-output off-road lights can cause serious glare for oncoming traffic.

Build a Lighting Setup That Fits the Job

There is no universal winner between spot and flood beams. A dedicated spot is the stronger choice when long-range warning time is the priority. A dedicated flood is the better choice when wide, close-range control matters most. A combo beam offers a useful middle ground for vehicles that do both.

Choose the beam pattern based on your real night-driving conditions, then match it with dependable wiring, correct fuse sizing, solid mounts, and a switch system that keeps every circuit easy to control. The result is not just a brighter vehicle - it is a lighting setup that helps you see the information that matters when the trail, road, or workday runs past sunset.
